R-19 Sauna Wall Framing for Home Builders, Fix the Triangle Trap

Frame sauna walls with studs sized to meet your insulation goal: 2x4 at 16 inches on center for a typical home sauna, or 2x6 when you need higher R-value or must run electrical and plumbing services through the wall. The core assembly runs studs, cavity insulation, vapor control, a furring air gap, then tongue-and-groove interior cladding. Target R-19 to R-21 in the walls, and keep the heater on the low side of any sloped ceiling to avoid trapping steam overhead.

TL;DR:

• Using a 2x4 stud wall at 16 inches on center with R-19 mineral wool offers a cost-effective solution for most home saunas, but 2x6 framing is preferable in cold climates or when running extensive electrical and plumbing.
• Proper planning of wall layout, electrical rough-ins, and heater placement before framing prevents costly rework and ensures compliance with clearance and permit requirements.
• Applying the vapor barrier on the warm interior side of the wall, sealing all seams and penetrations, is critical to prevent moisture buildup and long-term structural issues.
• A flat or low-sloped ceiling with the heater positioned on the low end avoids the triangle trap, ensuring proper steam circulation and easier framing.
• Optimal interior wood choices are cedar or thermally modified aspen, which resist warping and release minimal resin; board size depends on room scale and desired aesthetic.

Table of Contents

• Planning Your Layout Before You Frame a Single Wall
• 2x4 vs 2x6: Choosing Stud Size and Spacing
• Building the Wall Assembly Layer by Layer
• R-Values and Insulation Types That Actually Perform
• Ceiling Slope, Heater Placement, and the Triangle Trap
• Framing and Sizing Vents Without Breaking Your Vapor Barrier
• Picking the Right Wood for Your Sauna Interior
• Common Framing Mistakes and a Quick Build Checklist
• Why This Guidance Comes From Hands-On Framing Experience
• Keeping Walls Stable and Fire-Safe in a High-Heat Room
• Moisture Control Beyond the Vapor Barrier
• A Builder’s Honest Take on DIY Sauna Framing
• Finishing Your Walls With the Right Interior Boards
• FAQ
• Sources

Planning Your Layout Before You Frame a Single Wall

The size of your sauna and how you arrange the benches decide almost everything about your wall framing before you cut a single stud. A two-person sauna with a single bench needs far less wall length and far fewer load points than a six-person room with an L-shaped bench and a corner heater guard. Measure your bench run first, then work backward to figure out where walls need extra blocking.

Ceiling height matters just as much. Most home saunas run between 84 and 88 inches finished, which affects stud length, top-plate configuration, and how much room you have for ceiling insulation. Our ceiling height guide breaks down exact measurements builders use to avoid a cramped hot room or a ceiling that wastes heat.

Before framing begins, walk through a short planning list:

• Mark heater clearance zones on the floor plan, since these dictate where studs cannot carry benches or trim.
• Confirm your rough opening size for the sauna door, typically a factory-standard width that should be set before wall layout.
• Check the subfloor for level and moisture tolerance, especially over concrete or in a converted garage space.
• Rough in any electrical runs for lighting or heater power before cavity insulation goes in.
• Verify local permit requirements for electrical work and any structural changes if you are converting part of an existing room.

Our commercial sauna design toolkit covers layout relationships between wall length, ceiling height, and heater checks that apply just as well to a home build, even though it was written with larger installations in mind. Getting these decisions right at the planning stage saves you from reframing a wall after insulation is already in.

2x4 vs 2x6: Choosing Stud Size and Spacing

A 2x4 wall at 16 inches on center handles most home saunas without trouble, especially when you pair it with a denser mineral wool batt that reaches R-19 within a standard 3.5 inch cavity. This is the setup most DIY builders choose because it keeps material costs down and the wall thickness reasonable in a converted garage or basement corner.

A 2x6 wall makes more sense when you are building in a cold climate, running plumbing or multiple electrical circuits through the wall, or simply want more insulation headroom without adding a continuous exterior layer. The deeper cavity lets you hit higher R-values with ordinary batts rather than compressing material or stacking layers.

Stud spacing affects more than structural strength. At 16 inches on center, you get more framing members and therefore more thermal bridging points, but a tighter, more predictable cavity for insulation. At 24 inches, you reduce lumber and bridging but need to be more careful about insulation support, since wider bays sag more over time without proper blocking.

A few practical rules for blocking and connections:

• Add horizontal blocking at bench height to anchor ledger boards without relying on drywall screws alone.
• Install solid blocking around the heater mounting area rated for the heater’s actual weight and clearance needs.
• Use construction adhesive plus nails on trim blocking near the ceiling, since heat cycling can loosen fasteners over time.
• When tying into an existing garage wall, frame a new stud wall just inside the old one rather than trying to insulate the original cavity, which often has wiring or venting you do not want to disturb.

Pro Tip: When framing around the door, add a doubled jamb stud on each side even in a small sauna. The extra width gives you more surface for weatherstripping and keeps the opening square after repeated heat exposure.

Building the Wall Assembly Layer by Layer

Getting the order right matters as much as picking good materials. A sauna wall that performs well in a cold climate or resists moisture over years follows the same sequence every time:

1. Frame the stud wall at your chosen spacing, squaring and plumbing each stud before moving to insulation.
2. Install cavity insulation, filling the full depth without compressing the material against the vapor barrier side.
3. Apply vapor control on the warm side, meaning the side facing the hot room interior, with all seams taped and overlapped.
4. Add furring strips horizontally over the vapor barrier to create an air gap, typically 3/4 inch thick.
5. Install tongue-and-groove cladding over the furring, fastened to the strips rather than through the vapor barrier into the studs.

Cavity insulation needs attention at every corner and around every stud bay. Batts that are cut even slightly short leave gaps that undercut your R-value, and batts stuffed too tight compress and lose loft, which also lowers performance. Our insulation guide walks through install steps that keep batts at full thickness without gaps at the edges.

Vapor control is where many home builds fail years down the line. Every seam needs foil tape rated for high heat, and every penetration, whether for electrical boxes or heater wiring, needs to be sealed back to the barrier rather than just patched around. A single unsealed penetration near the heater can let enough moisture into the cavity to eventually soften the framing.

Corners and butt joints deserve the same care as flat runs. Wrap the vapor barrier around inside corners as a single continuous piece where possible rather than stopping and starting at the corner stud, since that seam is hard to tape reliably. Where a sauna wall transitions into an exterior wall of the house, stop the sauna’s vapor barrier and seal it independently rather than trying to tie it into the house’s own barrier system, which is designed for a different moisture direction.

R-Values and Insulation Types That Actually Perform

Aim for R-19 to R-21 in the walls and R-30 or higher in the ceiling as a practical target for most home saunas, a guideline our insulation R-value page lays out in more detail. Regional builders in cold climates commonly recommend R-19 as a wall minimum, with the ceiling pushed higher since heat loss there has the biggest impact on how hard the heater has to work.

Mineral wool, often called rock wool, holds up better than standard fiberglass in a sauna wall cavity because it tolerates incidental moisture without losing its insulating structure. Fiberglass can compress and mat down if it absorbs humidity that works through a compromised vapor barrier, while mineral wool keeps more of its loft and also does a better job damping sound between a sauna room and the rest of the house.

If you are committed to a 2x4 wall and want more than the standard R-13 to R-15 that ordinary batts provide, you have three practical options. Switch to a denser mineral wool batt rated higher for the same 3.5 inch depth, add a thin layer of continuous rigid insulation on the exterior side of the studs before sheathing, or simply reframe with 2x6 if the wall is not yet built. Builders working in cold climates often default to 2x6 with mineral wool specifically to avoid the complexity of adding continuous layers.

Thermal bridging at the studs themselves pulls heat out of the wall even when the cavity insulation is doing its job, since wood conducts heat faster than the insulation around it. Insulated headers above door and window openings reduce one common bridging point, and running a thin continuous layer across the exterior face of the studs, even just half an inch, cuts the bridging effect across the whole wall rather than just the cavity.

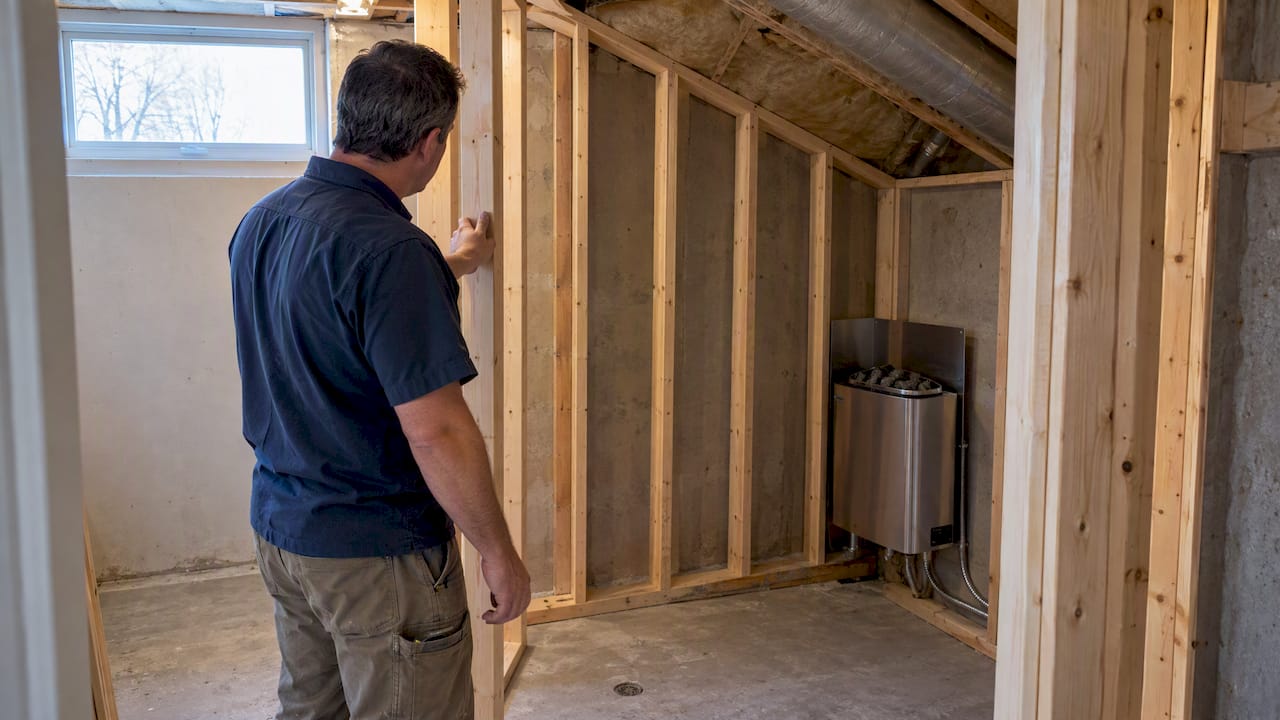

Ceiling Slope, Heater Placement, and the Triangle Trap

A sloped ceiling with the heater positioned at the high end creates what sauna builders call the triangle trap: steam rises and gets caught in the pocket above the heater instead of circulating through the room. A flat ceiling, or a sloped ceiling with the heater placed on the low end, avoids this problem entirely by giving steam a clear path to move rather than stall.

This is a framing decision, not just a heater placement choice. If you are planning any slope in the ceiling, decide the heater’s final position before you frame the top plates, since moving a heater after the ceiling joists are set means reframing.

A short checklist to verify before final cladding goes up:

• Confirm the heater’s required clearance to combustible materials on all sides and above, per the manufacturer’s installation sheet.
• Add blocking behind the wall where the heater guard rail or mounting bracket will attach.
• Tie ceiling joists into the top plate with hardware rated for repeated heat cycling, not just standard framing nails.
• Double-check that any ceiling slope directs steam away from, not toward, a pocket above the heater.

Pro Tip: If you are unsure whether your ceiling design risks a triangle trap, build it flat. A flat ceiling is easier to frame, easier to insulate evenly, and removes the guesswork entirely.

Framing and Sizing Vents Without Breaking Your Vapor Barrier

Most home saunas use an intake low on the wall near or beneath the heater and an exhaust placed high on the opposite wall, a layout that depends on the framing being planned before insulation goes in. Our heater placement guide covers the sizing rules that determine how large these openings need to be, which should be confirmed before you cut any stud bay for a vent.

A few details keep the vapor barrier intact once vents are framed in:

• Frame the vent opening with a solid sleeve rather than just cutting a hole through insulation and barrier, which leaves ragged edges that leak air.
• Use an insulated duct sleeve where the vent passes through an exterior wall to limit condensation at the transition point.
• Tape the vapor barrier tightly around every vent sleeve the same way you would around an electrical box.
• Route conduit through studs using a dedicated channel rather than notching randomly, and reseal the barrier immediately after.

Finishing trim around a vent grille should sit flush with the tongue-and-groove boards, with enough clearance for the grille to be removed later for cleaning without damaging the surrounding wood.

Picking the Right Wood for Your Sauna Interior

Cedar and aspen dominate sauna interiors for good reason: both resist warping under repeated heat and humidity cycles, and neither releases much resin or sap at sauna temperatures the way pine can. Thermally modified aspen, often sold as thermo-aspen, goes through a heat treatment that further stabilizes the wood, reducing shrinkage and swelling compared to untreated boards.

Board profile and thickness should match your bench scale and budget. A half-inch by 4 inch tongue-and-groove board gives a clean, traditional look for walls and ceilings in a standard home sauna. A full 1 by 4 inch board adds a bit more durability for larger rooms or high-traffic benches, while a narrower 1 by 3 inch groove profile suits tighter spaces or detail work where a finer board pattern reads better.

A short list of fastening and finishing basics:

• Use stainless or coated finish nails spaced to allow the boards to expand and contract slightly with humidity.
• Leave a small gap at board ends near corners rather than fitting them perfectly tight, since wood moves seasonally.
• Finish with a sauna-safe oil if you want some surface protection, or leave the wood natural, which many builders prefer.
• Avoid lacquers and varnishes entirely, since they trap moisture at the surface and can soften or peel under heat.

Common Framing Mistakes and a Quick Build Checklist

Most framing problems trace back to a handful of repeat mistakes: installing the vapor barrier on the cold side instead of the warm side, skipping blocking where a bench or heater guard will attach, leaving gaps in air sealing around penetrations, and never actually confirming heater clearances until the cladding is already up.

A condensed build sequence to follow from start to finish:

1. Finalize layout, bench position, and heater location on paper before cutting lumber.
2. Frame walls and ceiling, checking plumb, level, and square at every stud and top plate.
3. Rough in electrical and any ventilation sleeves.
4. Install cavity insulation to full depth without compression.
5. Apply and tape vapor control on the warm side, sealing every seam and penetration.
6. Add furring strips for the air gap, then install tongue-and-groove cladding.

Check stud spacing with a tape measure at several points along each wall rather than assuming the first bay sets the pattern correctly for the whole run. If you reach the electrical rough-in and are not confident about separating circuits or handling a dedicated heater line, that is the point to call a licensed electrician rather than guess.

Why This Guidance Comes From Hands-On Framing Experience

This guide reflects practical framing knowledge built around real installation questions homeowners and contractors bring to sauna construction and equipment experts, where Teddy writes on sauna construction and equipment topics for educational pages. The recommendations here line up with how wall systems actually perform once a heater is running and a room is cycling through regular use.

Two scenarios illustrate how these choices play out. A small single-bench sauna in a basement corner typically does fine with a 2x4 wall, mineral wool, and a half-inch cedar tongue-and-groove finish, since the room is small enough that heat loss stays manageable. A larger two-bench layout with a corner heater benefits from 2x6 framing and a full 1 by 4 inch thermo-aspen board, which holds up better across a bigger wall surface and more frequent heat cycling.

Keeping Walls Stable and Fire-Safe in a High-Heat Room

Humidity and heat cycling put real stress on framing over years of use, and a few extra steps at the framing stage keep walls stable long term. Use kiln-dried lumber rather than green framing stock, since lumber that is still drying out will shrink and twist after the wall is closed in, pulling nails and warping the cladding above it.

Add blocking at mid-height on long wall runs even where no bench or fixture requires it, since this extra bracing keeps studs from bowing as they absorb and release moisture over repeated sauna sessions. Corners deserve extra framing attention too: a doubled corner stud gives you more nailing surface for both the vapor barrier and the interior cladding, and resists racking better than a single corner stud under heat-driven expansion.

Fire safety deserves equal attention during framing, since heaters generate real heat close to combustible wall materials. Keep framing lumber and insulation clear of the heater’s rated clearance zone on every side, and never substitute a non-rated insulation product in the bay directly behind or above the heater. Mineral wool is naturally non-combustible, which makes it a safer choice in the cavities closest to the heater compared to standard fiberglass batts. Verify your heater’s clearance specifications against the actual framed opening before you close up any wall, since a wall built slightly out of plumb can shrink that clearance below what the manufacturer requires.

Moisture Control Beyond the Vapor Barrier

The vapor barrier does most of the work keeping moisture out of your wall cavity, but a few additional details push performance further. Leaving a ventilated air gap behind the tongue-and-groove cladding, created by the furring strips, lets the interior wood dry out between sessions rather than trapping residual moisture against the vapor barrier. Skipping this gap is one of the more common shortcuts that leads to cupped or warped boards within a year or two.

On an exterior wall, consider whether a drainage plane is needed on the outside of the sheathing, particularly if the sauna sits in a detached structure or an area exposed to wind-driven rain. This is separate from the interior vapor barrier and addresses moisture coming from outside rather than steam generated inside the room.

Door seals and threshold details matter more than most builders expect. A sauna door that does not seal well lets humid air escape into the wall cavity at the jamb, bypassing the vapor barrier system entirely. Weatherstripping rated for heat, paired with the doubled jamb stud mentioned earlier, keeps this leak path closed.

A Builder’s Honest Take on DIY Sauna Framing

Framing a sauna wall yourself is realistic for anyone comfortable with basic carpentry, and most single-room builds take a weekend or two of focused work once materials are on site. Where I’d draw the line is the heater circuit: that is licensed electrician territory, not a place to improvise, since heater clearances and dedicated wiring are safety issues rather than preferences. Budget your time around material delivery and insulation install, which usually take longer than the actual framing. Get the heater clearances right before you close up a single wall.

— Teddy

Finishing Your Walls With the Right Interior Boards

Once your framing, insulation, and vapor barrier are in place, the board you choose for the interior finish determines both the look and the long-term stability of your sauna. We carry three profiles that cover the range most home builders need.

• PROSAUNAS CEDAR 1/2X4 VG T&G V2E suits builders who want the traditional cedar look and grain on a budget-friendly board.
• PROSAUNAS THERMO-ASPEN 1X4 T&G STS4 is a strong pick for long-term dimensional stability in larger walls or two-bench layouts.
• PROSAUNAS THERMO-ASPEN GROOVE-S 1X3 T&G works well for narrow-board detailing or tighter spaces where a finer pattern suits the room.

To estimate footage, measure your total wall and ceiling square footage, then add about 10% for trim cuts and waste. If you would rather not handle installation yourself, our team offers Professional Sauna Installation and Custom Sauna Design Solutions, and our full sauna heaters and saunas collections are available if you are still finalizing your heater or kit. Reach out through Sauna Heater Supply for guidance matching boards to your specific layout.

FAQ

Should a Sauna Have 2x4 or 2x6 Walls?

A 2x4 wall at 16 inches on center works for most home saunas, especially with a dense mineral wool batt that reaches R-19 within the standard cavity depth. A 2x6 wall is the better choice in cold climates or when you need to run plumbing or extra electrical circuits through the wall without adding complexity.

What Is the Triangle Trap in Sauna Ceiling Design?

The triangle trap happens when a sloped ceiling has the heater positioned at the high end, which traps steam in the pocket above the heater instead of letting it circulate through the room. A flat ceiling, or a slope with the heater on the low end, avoids the problem and should be decided before the ceiling is framed.

How Thick Do Sauna Walls Need to Be?

Wall thickness depends on your stud choice: a 2x4 wall runs about 3.5 inches deep plus insulation and cladding layers, while a 2x6 wall runs about 5.5 inches thick. Either option should reach a finished wall assembly targeting R-19 to R-21, accounting for the furring air gap and tongue-and-groove cladding added on top of the stud depth.

What Type of Wood Is Best for Sauna Walls?

Cedar and aspen are the most common choices for sauna interior cladding because both resist warping under repeated heat and humidity cycles. Thermally modified aspen, or thermo-aspen, adds extra dimensional stability for larger walls or rooms that see frequent use.

Do Sauna Walls Need a Vapor Barrier on a Specific Side?

Yes, the vapor barrier goes on the warm side of the wall, meaning the side facing the interior of the hot room, with every seam and penetration taped and sealed. Placing it on the wrong side is one of the most common framing mistakes and can trap moisture inside the wall cavity over time.
