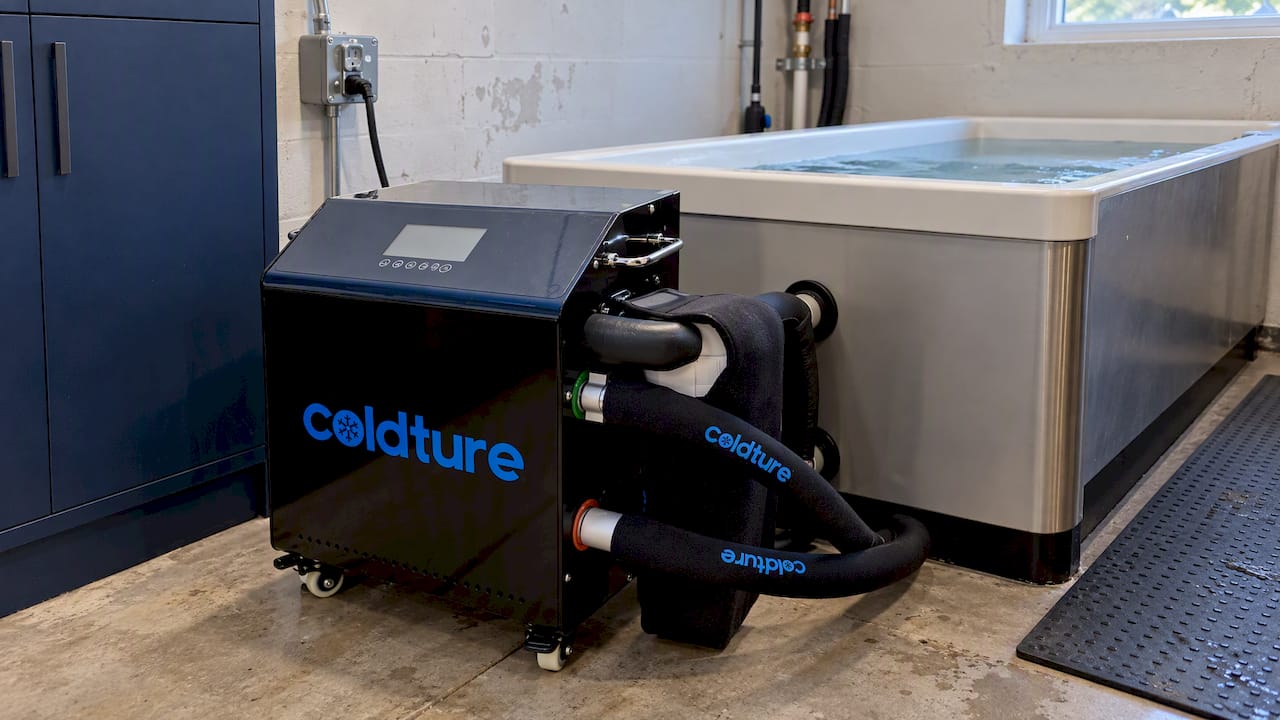

Coldture chiller beside commercial cold plunge

October 5, 2026 Brayden Thomas

3 Chiller Classes for Installers: Cold Plunge 120V vs 240V Circuits

A residential cold plunge needs a dedicated electrical circuit, GFCI protection matched to a permanent installation, and a voltage tier (120V or 240V) that matches the chiller’s nameplate rating. Smaller portable chillers typically run on a 15 or 20 amp 120V circuit, while larger units often require 240V service. Before finalizing any plan, confirm permit requirements with your local authority having jurisdiction and have a licensed electrician verify the circuit design.

TL;DR:

Most residential chillers require a dedicated circuit matching their voltage and amperage ratings, with larger units often needing 240V service.

The compressor is the main power draw, with startup surges that can trip breakers if circuits are shared or undersized.

GFCI protection should be installed at the breaker or receptacle level for safety and code compliance, especially near water.

Correct wire gauge and weatherproof outlets are essential, with outdoor installations needing appropriate enclosures and conduit.

Permits are generally required for new circuits or outdoor wiring, and inspections verify compliance with local electrical standards.

Saunaheatersupply

Choose The Right Cold Plunge Equipment

Sauna Heater Supply helps installers select cold plunges, equipment, and components suited to their project and space.

Explore cold plunge equipment

1. What electrical components actually draw power?
2. How do voltage and amperage tiers compare?
3. How do you implement dedicated circuits and GFCI protection?
4. What wiring and receptacle specs apply?
5. Does indoor or outdoor placement change the requirements?
6. When do you need a permit and inspection?
7. What site and plumbing prep affects the electrical plan?
8. How do we map chillers to circuit tiers?
Why we push installers toward permits over shortcuts
Matching your cold plunge chiller to the right setup
FAQ
Sources

1. What electrical components actually draw power?

A cold plunge system pulls power from several distinct sources, and understanding each one helps you size the circuit correctly instead of guessing. The compressor inside the chiller is the biggest draw by far, and it cycles on and off rather than pulling a steady current. Circulation pumps draw less but run continuously during operation. Control boards, displays, and optional add-ons like UV sanitizers or inline heaters each add their own smaller load.

Chiller compressor: the largest and most variable load, with higher startup current than running current.
Circulation pump: a steady, moderate draw that runs whenever the system filters or cools.
Control electronics: low-wattage but constant, often remaining powered even in standby.
Optional accessories: UV sanitizers or auxiliary heaters add incremental draw that should be included in total circuit planning.

Whether the unit is corded or hardwired changes your receptacle and GFCI choices, since a corded appliance needs a compatible outlet while a hardwired one is wired directly into a junction box.

2. How do voltage and amperage tiers compare?

Cold plunge chillers span a wide range of electrical demand, and matching the right tier to the right product avoids both under-sizing and overspending on unnecessary service upgrades. Small portable units often run comfortably on a 120V, 15 or 20 amp circuit. Larger dedicated chillers, especially those built for bigger volumes or faster cooling, frequently step up to 240V.

Running amperage is not the whole story. Compressors pull a brief surge of startup current well above their steady-state draw, and that spike is what trips breakers or causes nuisance shutoffs on shared circuits. A circuit that looks adequately sized for running amps can still fail if it is shared with a refrigerator or other compressor-driven appliance pulling its own inrush at the same moment. Refrigeration-style compressors used in commercial settings show the same behavior, which is why power planning guidance for large refrigeration units stresses dedicated circuits over shared ones.

Chiller class	Typical voltage	Typical circuit
Small portable chiller	120V	15 or 20 amp dedicated
Mid-size residential chiller	120V or 240V	20 amp or 240V dedicated
Larger dedicated chiller	240V	Dedicated 240V circuit

Always verify the nameplate rating on the specific chiller model before wiring anything. Our sauna power requirement electrical planning guide walks through the same nameplate-first approach for sauna heaters, and the logic carries over directly to chillers.

3. How do you implement dedicated circuits and GFCI protection?

A dedicated circuit means the chiller is the only load on that breaker, which eliminates the shared-load tripping problem described above and keeps a compressor’s startup surge from knocking out other equipment. It also isolates a fault to one appliance rather than an entire branch circuit, which matters near standing water.

GFCI protection comes in three forms, and they are not interchangeable for every situation:

Breaker-level GFCI: protects the entire circuit from the panel outward, the most robust option for a permanent install.
Receptacle-level GFCI: protects the outlet and anything downstream of it, common and code-accepted for many fixed installations.
Cord-mounted GFCI: built into the power cord itself, convenient for portable units but generally treated as temporary protection rather than a permanent solution.

The ESFI outdoor electrical safety checklist explains that a GFCI disconnects power when it detects current leaking to ground, and recommends this protection for any outlet near water or servicing pool and spa equipment. For a cold plunge installed permanently indoors or outdoors, fixed GFCI protection at the breaker or receptacle is the safer long-term choice over relying on a cord-level device.

Pro Tip: Ask your electrician to confirm with your local inspector whether a cord-mounted GFCI satisfies code for a permanent cold plunge location, since acceptance varies by jurisdiction.

4. What wiring and receptacle specs apply?

Wire gauge has to match the amperage the circuit will carry, and undersizing it is one of the most common mistakes on DIY installs. For longer runs between the panel and the plunge location, consider upsizing the gauge to offset voltage drop over distance.

14 AWG is rated for a 15 amp circuit.
12 AWG is rated for a 20 amp circuit.
10 AWG handles higher draws, including many 240V chiller circuits.
NEMA 5-15 or 5–20 receptacles cover standard 120V connections, while NEMA 6-20 or 6-50 are common for 240V equipment.
Hardwired connections bypass the receptacle question entirely and are often required for larger 240V chillers.

Outdoor or wet-area connections need weatherproof boxes with in-use covers, rated for the location, along with conduit appropriate for exterior exposure. A receptacle rated for indoor use should not be installed next to an outdoor plunge deck.

5. Does indoor or outdoor placement change the requirements?

Placement changes quite a bit about what protective equipment you need.

NEMA 3R: suitable for general outdoor exposure to rain and dust.
NEMA 4 or 4X: appropriate where hosing down equipment or corrosion resistance matters.
Indoor installations: still need attention to humidity and splash exposure, since a plunge generates condensation and occasional overflow near the receptacle.
Clearance: keep receptacles and panels a safe horizontal distance from the plunge edge, following your electrician’s guidance on local code minimums.

Indoor setups also need a drainage plan that keeps wiring runs away from any path water might take during fill, drain, or overflow.

6. When do you need a permit and inspection?

Most jurisdictions require a permit whenever you add a new circuit, modify your electrical service, or install new outdoor wiring, and a cold plunge checks at least one of those boxes in nearly every case.

Confirm the trigger: new dedicated circuits and outdoor electrical work are the most common permit triggers for this project.
Prepare documentation: inspectors typically check breaker sizing, circuit labeling, GFCI protection type, weatherproofing, and wiring method against the National Electrical Code.
Coordinate early: talk to your authority having jurisdiction before wiring is finalized, and ask a licensed electrician to confirm load calculations and GFCI placement match local amendments to the code.

Our sauna electrical requirements guide covers the same permit and inspection basics that apply to most residential wet-area equipment.

7. What site and plumbing prep affects the electrical plan?

A level, weight-bearing surface matters for more than stability. Water weighs 8.34 pounds per gallon, so a filled plunge adds real load to a deck or floor, and uneven settling over time can stress nearby conduit runs.

Choose a level surface rated to carry the combined weight of the shell, water, and users.
Route panels and receptacles away from the likely path of drain water or overflow.
Plan hose routing and water supply location before running conduit, so wiring never crosses a wet path.

A cold plunge setup guide recommends exactly this approach: a weight-bearing location with nearby drainage and water access planned before any equipment goes in.

8. How do we map chillers to circuit tiers?

Matching chiller capacity to plunge volume keeps cooling performance predictable, and our cold plunge sizing guide is a useful starting point for volumes in the 60 to 72 inch range. From there, circuit planning follows the nameplate.

Confirm chiller capacity against plunge volume before ordering, since undersized cooling runs longer and stresses components.
Check the nameplate voltage and amperage against the circuit you plan to install, not against general product category assumptions.
Follow an installer checklist: site prep, circuit spec, GFCI selection, proper labeling at the panel, and permit documentation filed before final inspection.

Our temperature guidance in the cold plunge temperature plan also factors into chiller sizing, since colder target temperatures demand more consistent compressor run time.

Why we push installers toward permits over shortcuts

The most common mistake we see is a plug-in chiller wired to a shared household outlet because the manual technically allows it. That shortcut works until a compressor’s startup surge trips the breaker during a refrigerator cycle, or until an inspector flags unpermitted outdoor wiring during a home sale. Permits and fixed GFCI protection cost more time upfront and save far more later. When you are unsure which product class fits your space, expert advice can help you match equipment to your electrical plan.

— Teddy

Matching your cold plunge chiller to the right setup

We carry three chiller classes that cover most residential needs, and each fits a different electrical and capacity profile. The Coldture Water Chiller suits homeowners who want straightforward cooling for a standard-size plunge. The AquaCal TropiCool TC1000 Water Chiller fits smaller volumes or tighter electrical budgets, while the AquaCal TropiCool TC1500 Water Chiller handles larger plunges or faster cooldown needs.

Coldture Water Chiller: a solid fit for single-user plunges where simple, reliable cooling matters most.
AquaCal TropiCool TC1000: best for smaller setups where circuit capacity is limited.
AquaCal TropiCool TC1500: suited to larger plunges or households expecting heavier daily use.

Always check the nameplate rating against your planned circuit and have a licensed electrician confirm the install before you finalize your order. Browse our full cold plunge and chiller lineup or explore our sauna and sauna heater collections if you are planning a combined wellness space.

FAQ

How many amps does a cold plunge use?

Amperage depends entirely on the chiller model, with small portable units commonly running on a 15 or 20 amp 120V circuit and larger chillers requiring 240V service. Always check the specific nameplate rating rather than assuming a figure based on plunge size alone.

Does a cold plunge use a lot of electricity?

Electricity use depends on compressor size, target temperature, and how often the unit cycles to maintain that temperature. A dedicated circuit sized to the nameplate rating, rather than a shared household outlet, keeps the system running reliably regardless of overall consumption.

What plumbing is needed for a cold plunge?

A cold plunge setup guide recommends a level, weight-bearing surface with nearby water access and a clear drainage path. Keeping drain routes and hose connections separate from electrical runs reduces the risk of water contacting wiring.

What temperature does Joe Rogan cold plunge?

We do not have a verified source for a specific individual’s personal plunge temperature. Most residential cold plunge users target a range informed by their own tolerance and goals, which our temperature planning guide covers in more detail.
