2 in/ft Steam Room Ceiling Slope for Contractors & Homeowners

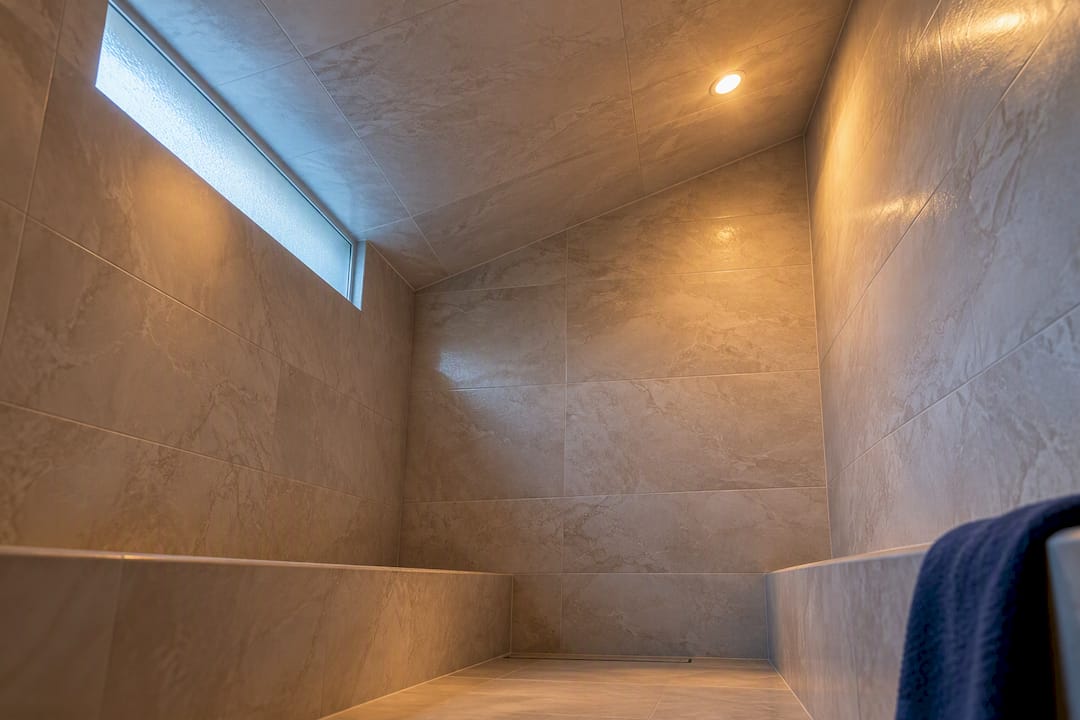

Slope steam room ceilings a minimum of 2 inches per foot toward the wall, a standard drawn directly from TCNA methods SR613 and SR614. This angle keeps condensation moving to the walls instead of collecting overhead and dripping on anyone underneath. The slope only works effectively when combined with proper waterproofing and insulation behind the finished surface.

TL;DR:

• Proper waterproofing, insulation, and membrane integrity are essential for the slope to effectively prevent condensation and water drip issues.
• The minimum slope is 2 inches per foot, or roughly a 9.5-degree angle, measured on the finished tile surface, with adjustments needed for fixture clearances.
• Sloping from a center ridge or using multi-plane designs can help minimize headroom loss in larger or irregularly shaped steam rooms.
• Common causes of dripping ceilings include flat pockets, under-sloped transitions, unsealed vapor barrier laps, and insufficient insulation, not the slope standard itself.
• Accurate measurement and documentation during construction are critical to prevent costly rebuilds caused by measuring on framing instead of finished surfaces.

Table of Contents

• What TCNA and NTCA specify, and why the number matters
• How to calculate elevation drop and check clearances
• Building an assembly that makes the slope actually work
• Why ceilings still drip, and how to fix one that does
• A pre-construction checklist worth keeping on file
• How Sauna Heater Supply’s technical library supports this build
• What actually separates a good ceiling from a code-minimum one
• Sourcing the right heater and materials for your steam room
• Where to verify the technical standards yourself
• Sources
• FAQ

What TCNA and NTCA specify, and why the number matters

Steam saturates a ceiling faster than any other surface in the room, and when warm vapor meets a cooler surface, it condenses into droplets. A flat ceiling holds those droplets until gravity pulls them straight down onto whoever is sitting below. TCNA methods SR613 and SR614 address this directly by setting 2 inches per foot as the minimum slope for steam room ceilings, a detail the industry treats as a floor, not a suggestion.

In metric terms, that pitch works out to 50 millimeters of drop for every 300 millimeters of run, or roughly a 9.5 degree angle. NTCA’s technical commentary in TileLetter confirms the purpose: the slope exists specifically to prevent condensate from dripping onto occupants, not to improve appearance or airflow.

Designers have some flexibility in how they distribute that drop:

• A single-plane slope running the full ceiling toward one wall is the simplest layout to build and waterproof.
• Pitching from a center ridge lets each half of the ceiling reach the minimum slope while cutting the maximum height loss at any one wall roughly in half.
• Multi-plane ceilings work well in larger or irregularly shaped steam rooms where a single pitch would create an awkward low corner.

Treat 2 inches per foot as a starting point. Always confirm the figure against the specific manufacturer’s installation instructions and any tested assembly documentation before finalizing a design.

How to calculate elevation drop and check clearances

The math is simple once you know the finished run, which is the horizontal distance from the high point of the ceiling to the wall it slopes toward.

1. Measure the horizontal run in feet, from the ridge or high point to the target wall.
2. Multiply that run by 2 inches to find the required elevation drop.
3. Add the drop to your framing plan, then measure again once backerboard and tile are installed to confirm the finished plane, not just the framing, hits the target.

A 3-foot run needs 6 inches of drop. A 4-foot run needs 8 inches. Those numbers come straight from the ceiling slope guidance in the LATICRETE technical design manual, and they assume the measurement is taken on the finished tile surface after mortar bed and backerboard thickness are accounted for, not on bare framing.

Before locking in a slope, check it against every fixture in the room: bench headroom at the low wall, door swing clearance, light fixture depth, steamhead placement, and any ventilation access point. When the required drop eats into headroom more than the room can spare, pitch from the center instead of a single wall, shorten the span with a soffit break, or redesign the bench layout to sit clear of the low point.

Pro Tip: Chalk-line the finished slope on the framing before backerboard goes up, then check it again after tile. A slope that looks right on studs can disappear once mortar and tile thickness get added.

Building an assembly that makes the slope actually work

Slope alone will not stop condensation if the ceiling behind it cannot handle sustained moisture and heat. The LATICRETE steam room technical design manual calls for waterproofing on every surface inside a steam room, along with vapor control and insulation sized to keep the ceiling’s interior surface warm enough to resist condensation.

A steam room ceiling with proper insulation reduces surface cooling that drives condensation, which means the same 2 inch per foot slope performs measurably better than it would on an uninsulated ceiling, according to the LATICRETE manual.

A few construction details separate a durable assembly from a failure-prone one:

• Follow one tested assembly system from a single manufacturer rather than mixing membrane brands or layer orders.
• Include movement joints and open slip joints at ceiling and wall transitions to accommodate thermal expansion without cracking tile or grout.
• Tie ceiling membrane laps into wall and pan liner details so water has a continuous path down and out, not a gap where it can pool.
• Choose impervious or glazed tile for steam exposure, since grout itself is permeable and depends on the membrane behind it for real waterproofing.

The membrane, insulation, and slope work as one system. Skipping any piece undermines the other two, even when the ceiling angle is technically correct.

Why ceilings still drip, and how to fix one that does

Most dripping ceilings result from common installation errors rather than the 2 inch per foot minimum slope standard itself.

• A flat pocket left where two framing planes meet, often at a soffit or bulkhead, becomes a low point that collects water instead of shedding it.
• An under-sloped transition near a wall or corner, where the finished slope quietly falls below the minimum once tile thickness is factored in.
• A vapor barrier lap installed backward or left unsealed at a seam, letting moisture behind the tile instead of stopping it.
• Missing or undersized insulation above the ceiling, which keeps the tile surface cold enough that condensation forms faster than the slope can clear it.

Before any demolition, NTCA’s guidance in TileLetter recommends documenting the existing slope, mapping exactly where drips occur, inspecting grout and tile bond for early signs of failure, and testing for moisture trapped behind the finished surface.

A reseated membrane or a patched section of grout can solve a localized leak. A ceiling that was built without the correct slope in the first place needs to come down and be rebuilt with the geometry corrected, since no surface treatment fixes a pitch problem underneath it. When concealed moisture shows up during inspection, bring in a qualified tile and waterproofing professional before finishing the surface again.

A pre-construction checklist worth keeping on file

Recording a few numbers before framing begins saves a rebuild later.

1. Log the horizontal run in feet from ridge or high point to each wall the ceiling slopes toward.
2. Calculate and write down the required drop in inches for each run, using 2 inches per foot as the minimum.
3. Note the resulting high point and low point elevations once finished tile thickness is included.
4. Confirm tile selection, membrane system, and ceiling insulation R-value against the manufacturer’s tested assembly.
5. Check movement joint locations, slip joints at transitions, and clearances for the door, bench, lighting, and steamhead.
6. Flood-test any pan liner before it gets covered, and keep manufacturer installation documents on file for the project record.

How Sauna Heater Supply’s technical library supports this build

Sauna Heater Supply publishes companion guides that carry this ceiling slope discussion into related decisions, including sauna ceiling height and steam room waterproofing written by Teddy. Both pieces cover the measurements and material choices that feed directly into a compliant ceiling design.

Beyond the technical content, the catalog and product guidance stay within covered products such as sauna heaters, steam room equipment, and accessories, plus installation and design support for readers who want a second set of eyes on their plans. None of that changes the underlying standard. The slope requirement comes from TCNA and LATICRETE documentation, and any project should be checked against those sources directly.

What actually separates a good ceiling from a code-minimum one

The 2 inch per foot figure gets treated as the whole answer online, and that is where most guidance stops short. The number matters, but it is a minimum for a reason: it assumes a properly insulated ceiling, a single tested waterproofing assembly, and a finished-plane measurement taken after tile, not framing. Skip any of those and the same slope that works on paper will still drip in practice.

The more common failure is not choosing the wrong angle. It is measuring the slope on studs, forgetting that mortar bed and tile thickness eat into that drop, and discovering the shortfall only after the room is finished and steaming. Contractors who chalk-line the plane twice, once on framing and once on finished tile, catch that gap before it becomes a callback.

Prioritize the assembly over the angle. A correctly sloped ceiling built on the wrong membrane system will still fail, while a well-insulated, single-system assembly gives that 2 inch minimum room to actually do its job.

— Teddy

Sourcing the right heater and materials for your steam room

Getting the ceiling geometry right is half the project. The heater, drip management, and finish materials still have to hold up to the same sustained heat and moisture. Sauna Heater Supply carries the Saunum Air 7 Sauna Heater Package for rooms that need reliable heat output, the Harvia Drip Tray to manage runoff at the base of a heater or bench, and PROSAUNAS Cedar 1/2x4 VG T&G V2E paneling for builds that pair wood surfaces with a tiled steam enclosure.

For projects that need more than product selection, professional sauna installation and custom sauna design solutions are available to help coordinate slope, insulation, and fixture placement before construction starts. Browse the full sauna heaters and saunas collections, or contact Sauna Heater Supply directly for help specifying a steam room build.

Where to verify the technical standards yourself

For full installation detail, consult TCNA’s steam room resource for methods SR613 and SR614, the LATICRETE steam room technical design manual for membrane and insulation specifics, and NTCA’s TileLetter commentary for field-tested clarification. Always confirm requirements against your manufacturer’s tested assembly and local building code.

Sources

• Ceiling slope in a steam shower - TileLetter
• Tiled steam room and steam shower technical design manual - LATICRETE
• Steam Rooms | Tile Council of North America

FAQ

What is the recommended slope for a steam shower ceiling?

The recommended minimum is 2 inches of drop for every foot of horizontal run, sloped toward a wall, as specified in TCNA methods SR613 and SR614. This keeps condensation moving to the wall instead of collecting and dripping on occupants below.

How much ceiling drop do I need for a 4-foot run?

At the 2 inch per foot minimum, a 4-foot run requires 8 inches of total elevation drop from the high point to the wall. Measure this on the finished tile surface, not the bare framing, since mortar bed and backerboard thickness affect the final result.

Can I reduce the height loss from ceiling slope?

Yes. Pitching the ceiling from a center ridge toward two walls, instead of sloping the entire ceiling from one wall, lets each side reach the required minimum while cutting the maximum height loss at any single wall roughly in half.

My steam room ceiling is dripping. What should I do first?

Document the existing slope, map where the drips occur, and inspect the grout and tile bond for signs of moisture behind the surface, following the inspection approach outlined by NTCA. If the original ceiling was built without the correct slope, redesign and rebuild is the appropriate fix rather than a cosmetic patch.

Is the 2 inch per foot slope a building code requirement?

It is an industry design standard published through TCNA methods SR613 and SR614, not automatically part of every local building code. Verify both the manufacturer’s tested assembly instructions and your local code before finalizing a design.
