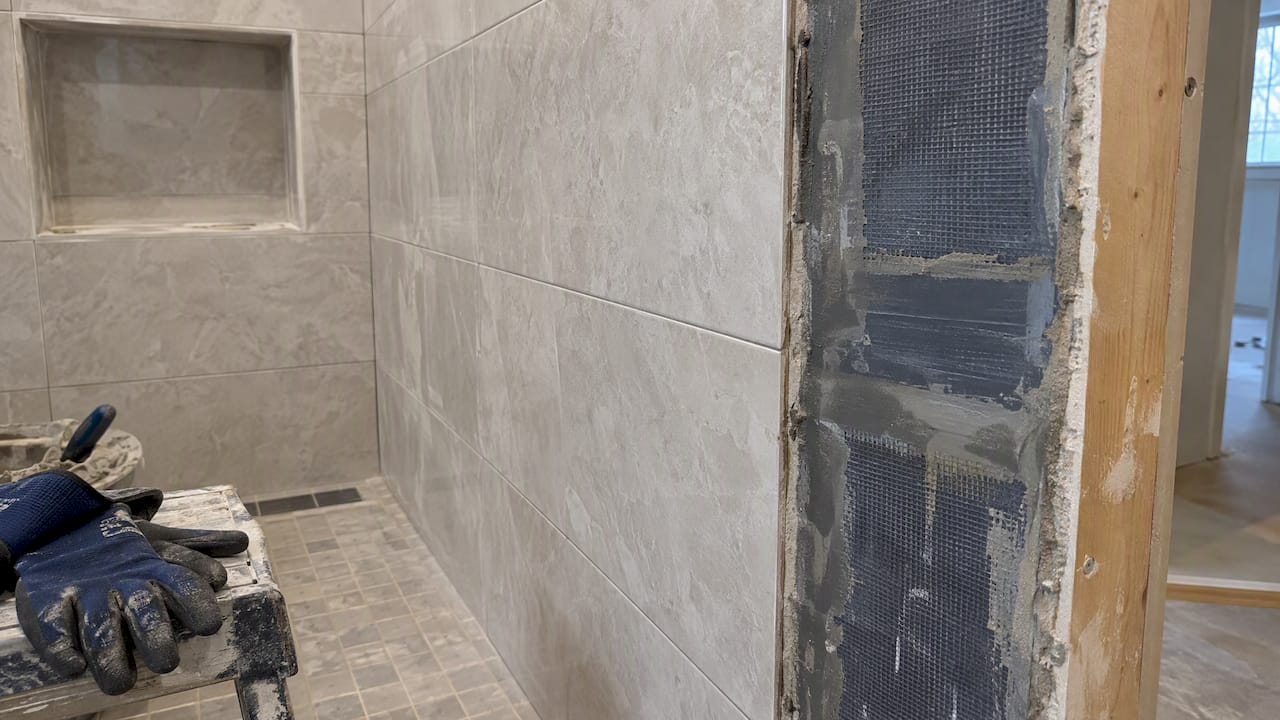

Steam shower tile beside exposed vapor membrane

October 11, 2026 Brayden Thomas

Steam Room Materials: The 0.5 Perm Rule for Homeowners and Builders

For a steam room that lasts, we recommend non-porous finishes such as porcelain or ceramic tile and quartz slabs, installed over a continuous, bonded waterproofing membrane rated at 0.5 perms or less. Skipping this waterproofing step, or choosing a porous finish instead, pushes moisture into the wall cavity and forces a larger, harder-working steam generator to compensate.

TL;DR:

Choose porcelain or ceramic tile meeting ANSI A137.1, with water absorption below 0.5%, or quartz slabs for fewer seams and less grout maintenance.

Specify a membrane rated at 0.5 perms or lower, verified by ASTM E96 Procedure E; add a secondary vapor barrier if it exceeds that limit.

Require ANSI A118.15 mortar with 95% to 100% tile coverage, and wait for the manufacturer’s recommended cure time, often about 14 days after grouting.

Slope floors 1/4 inch per foot toward the drain, and angle ceilings to send condensation toward walls instead of occupants.

Sealed natural stone and tadelakt remain possible, but they typically need about 50% more generator capacity and more frequent resealing than tile or quartz.

Saunaheatersupply

Choose the Right Steam Room Equipment

Sauna Heater Supply offers steam room equipment and personalized guidance to help match products to your space.

Explore steam room equipment

Best finish materials: porcelain, ceramic, large-format tiles, and quartz composites
Waterproofing and vapor control: perm ratings, membranes, and placement
Substrate, mortars, grout and installation practice builders must insist on
Insulation, slopes, drainage and movement joints to prevent hidden moisture damage
Materials to avoid and practical substitutes that achieve the same look
Installer checklist and pro tips for a steam-ready build
When a steam-room specialist is worth hiring
How Sauna Heater Supply helps with your steam room build
FAQ
Sources

Best finish materials: porcelain, ceramic, large-format tiles, and quartz composites

Porcelain and ceramic tile that meet the ANSI A137.1 standard for water absorption, under 0.5% by volume, resist the constant soaking a steam room delivers every time it runs. That low absorption rate means the tile body itself never becomes a reservoir for moisture, which is what causes cracking, efflorescence, and bond failure in lesser materials over time.

Water beads on porcelain steam shower tile

Large-format tiles, generally around two feet square or larger, cut down the number of grout joints in the room. Fewer joints means fewer points where water can work its way behind the finish, and it also means less grout to scrub and reseal down the road.

Quartz composite slabs sit a step above tile for budgets that allow it. A quartz wall panel can span a shower or steam enclosure with almost no seams at all, and the resin-bound surface resists the mold growth that tends to collect in tile grout lines over the years.

Porcelain or ceramic tile rated under 0.5% absorption per ANSI A137.1
Large-format tile (24 inches or larger) to minimize grout exposure
Quartz or composite slabs for a near-seamless, low-maintenance finish

Tile meeting ANSI A137.1’s absorption threshold of under 0.5% by volume holds up to repeated steam cycles far better than standard wall tile, which can absorb several times that amount.

Finish choice also changes how hard your steam generator has to work. Non-porous surfaces heat up and release heat predictably, which keeps generator sizing straightforward and day-to-day performance consistent.

Waterproofing and vapor control: perm ratings, membranes, and placement

A perm rating measures how much water vapor passes through a material over time, and it’s tested using ASTM E96 Procedure E, the method built specifically for high-humidity assemblies like steam rooms. Methods SR613 and SR614 from the Tile Council of North America call for a bonded membrane rated at 0.5 perms or lower behind the finish, which keeps vapor from migrating into the wall assembly in the first place.

Liquid-applied membranes typically need to reach around 30 mils of dry film thickness to hit that 0.5-perm target, while sheet membranes achieve it through their material thickness and seam treatment. If the specified membrane can’t document a perm rating at or below that threshold, the assembly needs a secondary vapor barrier behind the substrate to make up the difference. Our steam room waterproofing guide walks through membrane selection and perm testing in more detail.

Confirm the membrane’s tested perm rating, not just its marketing description
Require documentation showing ASTM E96 Procedure E test results
Add a secondary vapor barrier if the primary membrane exceeds 0.5 perms

Pro Tip: Ask for the manufacturer’s data sheet before installation begins, and check that the perm rating listed matches the exact product and thickness going on your walls, not a general product line.

Substrate, mortars, grout and installation practice builders must insist on

Getting the finish materials right only matters if the installation underneath them holds up. Custom Building Products’ steam room guidance outlines the installation details that separate a steam room that lasts decades from one that fails within a few years.

Require 95 to 100% mortar coverage behind every tile, using back-buttering and a properly sized notched trowel for large-format pieces.
Specify ANSI A118.15-grade mortars, which are built for the wet, high-heat demands of steam environments.
Choose 100% solids epoxy grout where maximum chemical and moisture resistance matters, particularly on floors and bench surfaces.
Tie the waterproofing membrane directly into the drain assembly and treat every penetration, including steam inlets and seat supports, as a potential leak point.
Allow the manufacturer-recommended cure time, often around 14 days after grouting, before running the first steam cycle.

Requiring photographic proof of mortar coverage before grouting begins is a simple way to catch gaps while they’re still accessible.

Insulation, slopes, drainage and movement joints to prevent hidden moisture damage

Rigid foam insulation inside the wall cavity keeps the wall surface warm enough to control the dew point, which reduces the condensation that otherwise forms behind the tile. Batt insulation doesn’t offer the same moisture resistance and is generally discouraged for this reason.

Geometry matters just as much as materials. Floors need a pitch of about 1/4 inch per foot toward the drain, and ceilings should slope enough to direct condensation to the walls rather than letting it drip onto anyone underneath, a detail we cover in our ceiling slope guide. Bench and seat surfaces need their own slope to shed water instead of pooling it, which our seating slope guide covers in more depth.

Use rigid foam insulation rather than batt insulation to manage dew point
Slope floors 1/4 inch per foot and ceilings enough to avoid drips on occupants
Place movement joints roughly every 8 feet and at every plane change, sealed with steam-rated sealant

These details rarely show up in a finished photo, but they’re what keeps the finish looking good for years instead of needing a tear-out within a season or two, a scenario our hidden moisture checklist describes in practical terms.

Materials to avoid and practical substitutes that achieve the same look

Wood, standard concrete, brick, Venetian plaster, and standard fiberglass all struggle in a steam room environment. Wood swells and can harbor mold, untreated concrete and brick are porous enough to absorb moisture steadily, and standard fiberglass can delaminate under sustained heat and humidity.

Wood-look porcelain tile delivers the look of a cedar interior without the moisture risk
Concrete-look porcelain achieves an industrial aesthetic with a non-porous surface
Quartz slabs replicate a natural stone appearance with far less maintenance

Natural stone and tadelakt plaster can work in a steam room when sealed and maintained correctly, but porous finishes like these typically call for about 50% more steam generator capacity than a tile or quartz room of the same size, along with more frequent resealing.

Installer checklist and pro tips for a steam-ready build

Before tile goes on the wall, confirm the finish meets the ANSI absorption threshold, the membrane has documented perm test results, the mortar spec calls for ANSI A118.15 material and 95% coverage, the insulation is rigid foam, and the floor and ceiling slopes are set correctly with the drain tied into the waterproofing.

Confirm tile absorption rating and membrane perm documentation before ordering materials
Require shop drawings showing membrane-to-drain details and steam inlet placement
Verify manufacturer cure times before scheduling the first steam cycle

Pro Tip: Insist on steam-rated sealants at every joint and penetration. A standard caulk will break down under repeated steam cycles far faster than one engineered for the exposure.

Equipment choice matters here too. A control and steamhead like the iSteamX Steam Shower Control and Steamhead needs a properly sloped, sealed wall penetration, a wall seat such as the MS 19.75 in. Wallseat depends on the bench slope and waterproofing details above it, and an Aroma 3 in. Steamhead with AromaTherapy Reservoir should be positioned with the same inlet clearance and shielding as any other steamhead.

When a steam-room specialist is worth hiring

Confident DIYers can often handle tile setting and finish selection, but waterproofing detailing around drains, seat supports, and steam inlets carries real risk of hidden failure if it’s done wrong. If a project involves structural changes, a complex drain layout, or warranty expectations tied to a specific membrane system, bringing in a specialist installer is worth the added cost.

— Teddy

How Sauna Heater Supply helps with your steam room build

We carry steam equipment and accessories that pair with properly built steam rooms, including steamheads, controls, and wall seats. Our Custom Sauna Design Solutions and professional installation support are built around getting the equipment side of your project matched correctly from the start, backed by a price match guarantee and fast shipping on in-stock items.

If you’re ready to spec equipment for your build, take a look at the iSteamX Steam Shower Control and Steamhead or browse our full steam room equipment and sauna heater collection to get started.

FAQ

What do 20 minutes in a steam room do?

A typical steam session raises your skin temperature and increases circulation while you breathe warm, humid air, which many people find relaxing for muscles and sinuses. Individual tolerance varies, so session length should be based on comfort and any relevant health guidance rather than a fixed rule.

What materials can be used in a sauna?

Saunas typically use wood paneling such as cedar or hemlock, since dry heat doesn’t create the same moisture exposure a steam room does. Our steam room versus sauna guide breaks down why wood works in one environment but is discouraged in the other.

What is the typical size of a steam room?

Steam room sizes vary widely based on household layout and how many people will use the space at once, ranging from a small single-person shower-style enclosure to a larger multi-person room. The right generator size depends on the finished room’s volume and the materials used on its walls, floor, and ceiling.

Which is hotter, a sauna or a steam room?

The humid air in a steam room transfers heat to your skin more efficiently, which is why the heat can feel intense.

Can natural materials like wood or stone be used in a steam room?

Wood and untreated natural stone are generally discouraged because they absorb moisture and can fail or harbor mold over time. Sealed natural stone is sometimes used, but it typically requires more generator capacity and more frequent maintenance than porcelain, ceramic, or quartz.
