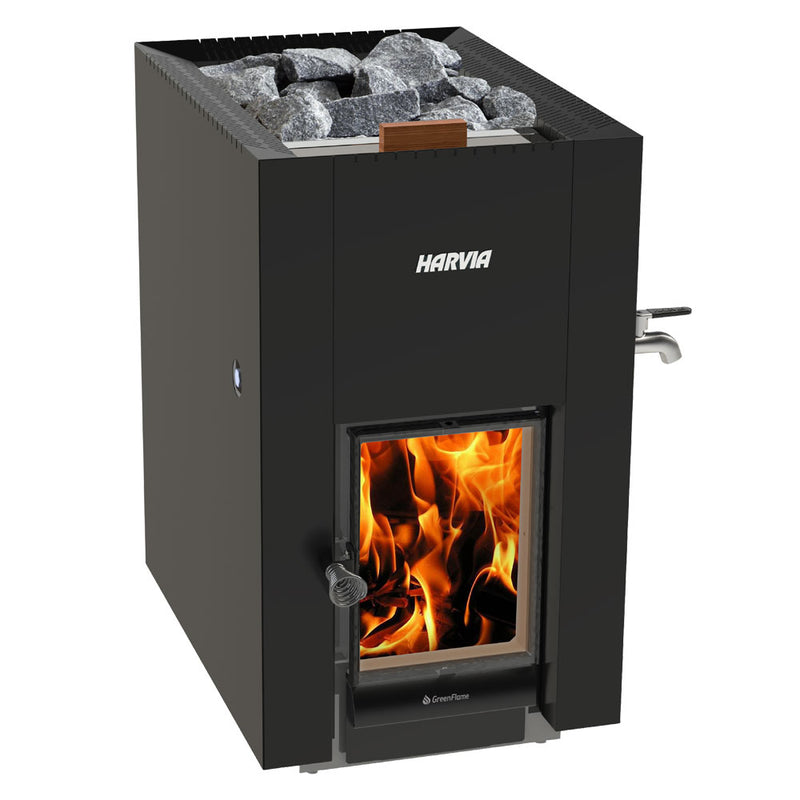

Harvia GreenFlame Series, 15.7kW, Wood Sauna Stove
Harvia WKLI22GM is a timeless and elegant black wood-burning stove that features a large glass door to create a unique atmosphere that highlights the fire beautifully. The stove is perfect for medium-sized saunas and boasts lower emission levels thanks to the GreenFlame technology. GreenFlame ® ensures a controlled burn, reliable operation and a long life for your stove. The stones of the WKLI22GM stove heat the entire sauna quickly, offering enough heat even for the most demanding sauna bathers.
Linear GreenFlame represents pioneering quality in sauna heater technology. The heart of the heater is a fully updated GreenFlame ® fire chamber, which has been designed with clean combustion in mind. The new fire chamber reduces the particulate emissions generated by wood combustion by 20% and carbon monoxide emissions by 70%. The updated GreenFlame fire chamber is an element in Harvia’s determined development efforts towards cleaner combustion and emission reductions. As a long-term goal, Harvia has decided to cut the particulate emissions of wood-burning stoves by half.
Features
- Durable steel structure and replaceable internals ensure a long service life
- Wood-burning
- 15.7 kW
- For sauna rooms from 317 to 635 cu. ft.
- Requires a minimum 88 lbs of stones (2 boxes-AC3020)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight chargers will apply).
- Floor-vertical installation

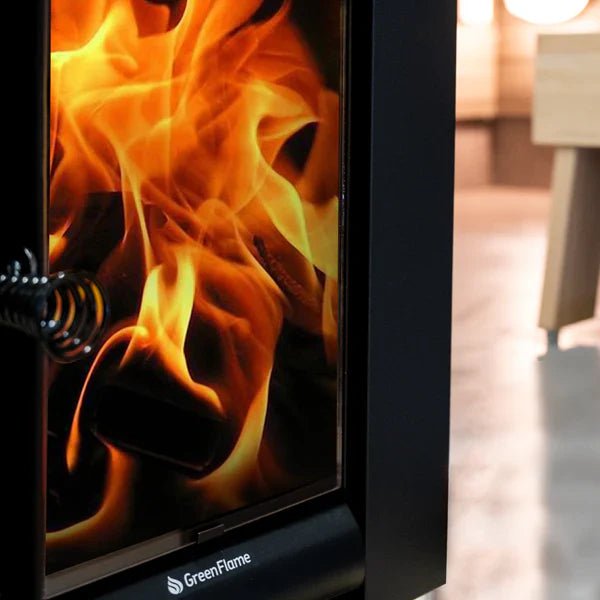

- Large glass door and advanced combustion technology to ensure a clean burn and long service life
- The matte black color and elegant design create a modern look in the sauna
- The adjustable frame legs facilitate installation and ensure stability
- Linear protective walls
- Designed, engineered, and made in Finland
- 20% lower particulate emissions and 70% lower carbon monoxide emissions
- Dimensions: 17.72" W (450mm) x 20.08" D (510mm) x 30.31" H (770mm)
Manuals
Installation and Operation Manual
Stone Requirements
Specifications
| Model |
WKLI22GM |
| Kilowatt Rating |
15.7 kW |
| Main material |
Steel |
| Primary Fuel |
Wood |
| Stone sizes |
10-15 cm |
| Width |
17.72" (450mm) |
| Depth |
20.08" (510mm) |
| Height |
30.31" (770mm) |
| Weight |
133.16 lbs (60.4 kg) |
Warranty
All new electric HARVIA SAUNA heaters are guaranteed for one year from date of purchase, and includes all heater parts such as thermostat, controls, contactors, etc.
This guarantee covers faults in manufacture and material only, and includes the exchange of new parts supplied by the manufacturer or importer, after the faulty part has been returned to same. The replacement of parts under warranty does not extend the warranty period beyond the original one year.
The guarantee does not cover defects caused by normal wear and tear, defects caused by improper installation, poor maintenance, or failure to follow the manufacturer’s instructions for installation, use and care, or alterations made to the Sauna product.
This guarantee is void if the heater is used improperly, pool, spa or well water should not be poured over the Sauna stones, as chemicals are harmful to the heater; the Sauna room must be heated for at least 30 minutes before water is poured over the stones; only one or two dippers full of water should be poured over the hot stones at one time. This guarantee will be void if a shower has been installed in the Sauna room.
This guarantee does not cover delivery costs of the faulty part or costs of the person carrying out the repair in the field. If the Sauna heater is returned to the manufacturer or the importer within five years after date of purchase, the importer will provide free labor for repair, but will charge for parts if date of purchase is past one year.
This guarantee will be void if installation and wiring is not carried out by a certified electrician or authorized and qualified service representative, who must sign the warranty page in the installation manual.
This guarantee will be void if warranty information is not filled out and returned within 15 days of purchase, and it applies only to original installation of product and to original purchaser.
This guarantee will be void if heater is not of proper size and heat output for the space it is intended to heat. This includes but is not limited to area of room, volume of room, uninsulated walls or ceilings, tiled or stone surfaces, glass surfaces-including doors, walls, windows, and other surfaces-, or any other non-wood surface.
This guarantee will be void if the heater is used without the proper amount and proper size of Harvia Sauna Rocks. Non-Harvia Sauna Rocks may introduce contaminants to the heater which may cause damage which will not be covered under the Harvia warranty.
This Guarantee will be void if the heater is connected to a GFI breaker. All Harvia Electric Sauna Heaters must be connected to a standard 2-pole breaker. If the heater is connected to a GFI breaker, nuisance tripping may
occur causing unnecessary and unintended wear on internal components. If connected to a GFI breaker, warranty on all internal components, including those of a control unit (if applicable), will be voided.
Elements are consumable goods and are therefore only covered upon first usage of the heater
This guarantee will be void if any essential oils are poured directly over the rocks or elements. Only Harvia essential oils, when properly diluted in water, can be used on the heater. Other essential oils will not properly evaporate and will leave a residue on rocks and elements which will cause damage and may be dangerous in some cases.
