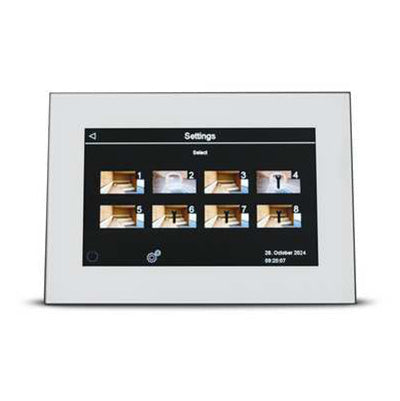

EOS Touch 3 Sauna Control, 7" - POWER BOX NOT INCLUDED
With its precise capacitive touchscreen and intuitive user interface, the EOS Touch 3 provides fast, simple and easy access to all connected sauna cabins and their functions.
Sauna enthusiasts are greeted with a premium 7-inch full-color touchscreen display with flush-mount installation for a modern appearance. A straighforward guided setup allows navigation to be tailored to your preferences though the sleek, configurable graphic interface.
Perfect for upscale homes or commercial sauna facilities, the EOS Touch 3 is in a league of its own with the ability to control up to 8 sauna cabins through a single display (using extensions). Control the rooms in unison or individually, with precise temperature adjustment up to 194°F for optimal sauna enjoyment.
Designed for reliable long-term performance, the Touch 3 hosts many convenient user features. The control is future-safe with firmware updates that can be carried out on-site through the system interface. If a reset is ever carried out during maintenance, the system backup and restoration settings save previously created user preferences. A digital sensor system is implemented with a safety temperature limiter, preventing overheating while wellness seekers relax and rejuvenate.
Supported by a 2-year warranty, the EOS Touch 3 sauna control offers refined, universal control with dependable performance bringing sauna cabins to a new level of comfort.
Features
- Exclusive rimless glass display with 7-inch capacitive color touchscreen for a modern flush-mount design.
- Multi-cabin control (with extensions) for up to 8 sauna rooms operating all sauna functions in unison or individually.
- Digital temperature adjustment ranging from 85° - 194° F (30 - 90°C)
- Interactive user interface with stylish icons and clear text for easy navigation supporting 20 different languages.
- Additional outputs available for control of third-party equipment such as lighting, ventilation fans and vaporizers for full cabin operation.
- Optional pin code protection for added security while servicing and fine-tuning control settings.
- Firmware can be updated on site through menu settings for long-lasting reliability.
- Power Box sold separately.
- Designed, engineered and built in Germany.
- Dimensions: 8.3"W (21 cm) x 1.6"D (4.2 cm) x 5.6"H (14.2 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Touch 3 Control Panel
- Recessed Housing for Control
- Temperature Sensor
- 5m Connecting Cable with RJ10 Plug & Housing
- 5m Connecting Cable with RJ14 & RJ10 Modular Plug
- Circuit Board
- 2 Control Panel Removal Tools
- 4 Cable Glands
- 4 Wood Screws 4 x 25 mm
- 2 Screws 4 x 40 mm
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model
|
TOUCH 3
|
|
Display
|
7" Capacitive Color Touchscreen
|
|
Temperature Range (Dry Mode)
|
86-194°F (30 - 90°C)
|
|
Heating Time Limitation
|
1 Hour
|
|
Maximum Lighting Output
|
100W
|
|
Maximum Fan Output
|
150W
|
|
Digital Sensor
|
194°F (90°C)
|
|
Safety Temperature Limiter in Sauna
|
282°F (139°C)
|
|
Safety Temperature Limiter in Heater
|
320°F (160°C)
|
|
Housing Material
|
Plastic
|
|
Safety Listing
|
CSA (Canadian Standards Association)
|
|
Width
|
8.3" (21 cm)
|
|
Depth
|
1.6" (4.2 cm)
|
|
Height
|
5.6" (14.2 cm)
|
|
Mounting Depth
|
1.4" (3.7 cm)
|
|
Construction Material
|
Plastic
|
Technical
Warranty
4-year warranty on heating elements for privately used sauna heaters
The warranty period begins on the date of production of the sauna heater (according to the type plate) and is 4 years for the heating elements for private use.
Any shipping, transport, travel, repair or assembly costs incurred will not be reimbursed by us. This also applies in particular to costs incurred without written authorization from our service department as a result of service calls from external companies.
A warranty service will only be executed if
- the production date of the heater is after December 1st, 2022.
- the assembly, commissioning and long-term operation of our products have been carried out professionally and in accordance with the manufacturer's specifications (see installation and operating instructions).
- the proof of purchase belonging to the product can be presented.
- proof that the electrical connection has been carried out by a qualified electrician can be provided.
- the warranty claim is sent to our service department together with the device designation, the item number, the serial number and a significant description of the error and an RMA number has been assigned there for the process.
A warranty service will not be executed if
- changes have been made to our products without our written consent.
- defects were caused a result of improper use.
- no original EOS spare parts were used within the warranty period.
Any warranty claim is void if the original type plate has been altered, replaced, removed, defaced or manipulated in any other way.
Manufacturer's Warranty Statement, EOS Design-Sauna heaters
The warranty period starts with the date of the product registration through the end customer at EOS Saunatechnik GmbH. Registration must be completed within three months after the date of purchase. The extended manufacturer‘s warranty in such case is 8 years by private use only. Otherwise the usual manufacturer’s warranty as per terms and conditions of trade of EOS Saunatechnik GmbH applies.
The warranty conditions and scope are, except the duration, as per standard manufacturer’s warranty.
A warranty service will only be executed if
- the product and its owner are registered with EOS Saunatechnik GmbH.
- the assembly, commissioning and long-term operation of our products have been carried out professionally and in accordance with the manufacturer's specifications (see installation and operating instructions).
- the original purchase receipt of the product is presented.
- proof that the electrical connection has been carried out by a qualified electrician can be provided.
- the warranty claim is sent to our service department together with the device designation, the item number, the serial number and a significant description of the error and an RMA number has been assigned there for the process.
A warranty service will not be executed if
- changes have been made to our products without our written consent.
- defects were caused a result of improper use and gross intent.
- no original EOS spare parts were used within the warranty period.
- the product is not exclusively used for private purposes.
Any warranty claim is void if the original type plate has been altered, replaced, removed, defaced or manipulated in any other way.
