EOS Cubo Avantgarde Sauna Heater
The EOS Cubo Avantgarde is a premium electric sauna heater that delivers exceptional performance in a luxurious, ultra-modern design.

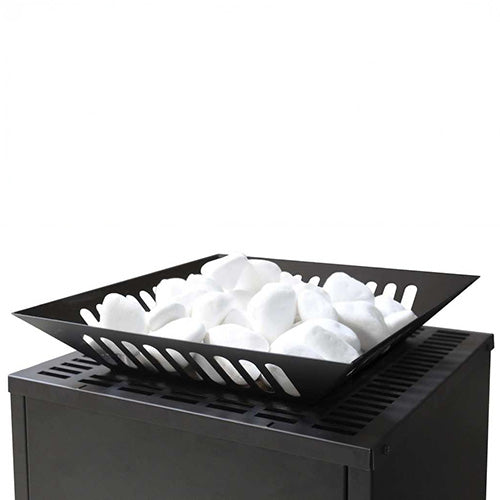

The matte black Cubo Avantgarde is constructed from durable powder-coated steel, which is scratch-resistant to protect its contemporary exterior. With its symetrical dimensions on all sides, the heater complements sauna rooms of any installation configuration. Its distinctive stylized upper stone basket is secured to the top of the heater and cradles decorative white quartz sauna stones for a dramatic visual impact. Layered above the internal diabase sauna stones, the added rocks improve heat retention and increase steam production when water is poured.
Featuring heating elements not directly contacting sauna stones and secure access to wiring connections, the Cubo Avantgarde is extremely efficient and service friendly. Boasting a large rock capacity relative to its compact footprint, the heater optimizes air convection for quick heat-up times, superior performance, and powerful sauna sessions.
Protected by a 2-year warranty, the Cubo Avantgarde offers an exceptional blend of precise craftsmanship and optimized performance to bring your sauna to life.
Features
- Freestanding powder-coated steel design with a scratch-resistant matte black finish.
- Stylish rock store extension with white quartz stones for more intense steam production.
- Uniform appearance on all sides for flexible placement options.
- Robust, durable and service-friendly construction.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 15.7"W (40 cm) x 15.2"D (38.5 cm) x 28.3"H (72 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Cubo Avantgarde Electric Sauna Heater
- Diabase Sauna Stones
- Rock Store Frame
- White Quartz Sauna Stones
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model
|
14-947523
|
|
Room Size
|
247-353 cu. ft.
|
|
Wattage Rating
|
7500
|
|
Amperage
|
30
|
|
Model
|
14-947524
|
|
Room Size
|
314-494 cu. ft.
|
|
Wattage Rating
|
9000
|
|
Amperage
|
35
|
|
Model
|
14-947525
|
|
Room Size
|
387-527 cu. ft.
|
|
Wattage Rating
|
15000
|
|
Amperage
|
20
|
|
Model
|
14-947526
|
|
Room Size
|
494-634 cu. ft.
|
|
Wattage Rating
|
12000
|
|
Amperage
|
25
|
|
Model
|
CUBO AVANTGARDE 208/3
|
|
Room Size
|
247-634 cu. ft.
|
|
Circuit Breaker
|
See Installation and Operation Manual
|
|
Voltage
|
208
|
|
Phase
|
3
|
|
Safety Listing
|
CSA (Canadian Standards Association)
|
|
Wire Size AWG
|
12
|
|
Minimum Ceiling Height
|
74.8" (190 cm)
|
|
Safety Distance (Front to Back)
|
19.9" (50.5 cm)
|
|
Safety Distance (Left to Right)
|
20.5" (52 cm)
|
|
Stone Capacity
|
77 lbs (35 kg)
|
|
Stone Size
|
2" to 4" (5-10 cm)
|
|
Width
|
15.7" (40 cm)
|
|
Depth
|
15.2" (38.5 cm)
|
|
Height
|
28.3" (72 cm)
|
|
Weight
|
62 lbs (28 kg)
|
Technical
EOS-Cubo-Avantgarde-IOM.pdf
EOS-Cubo-Avantgarde-Data-Sheet.pdf
Warranty
4-year warranty on heating elements for privately used sauna heaters
The warranty period begins on the date of production of the sauna heater (according to the type plate) and is 4 years for the heating elements for private use.
Any shipping, transport, travel, repair or assembly costs incurred will not be reimbursed by us. This also applies in particular to costs incurred without written authorization from our service department as a result of service calls from external companies.
A warranty service will only be executed if
- the production date of the heater is after December 1st, 2022.
- the assembly, commissioning and long-term operation of our products have been carried out professionally and in accordance with the manufacturer's specifications (see installation and operating instructions).
- the proof of purchase belonging to the product can be presented.
- proof that the electrical connection has been carried out by a qualified electrician can be provided.
- the warranty claim is sent to our service department together with the device designation, the item number, the serial number and a significant description of the error and an RMA number has been assigned there for the process.
A warranty service will not be executed if
- changes have been made to our products without our written consent.
- defects were caused a result of improper use.
- no original EOS spare parts were used within the warranty period.
Any warranty claim is void if the original type plate has been altered, replaced, removed, defaced or manipulated in any other way.
Manufacturer's Warranty Statement, EOS Design-Sauna heaters
The warranty period starts with the date of the product registration through the end customer at EOS Saunatechnik GmbH. Registration must be completed within three months after the date of purchase. The extended manufacturer‘s warranty in such case is 8 years by private use only. Otherwise the usual manufacturer’s warranty as per terms and conditions of trade of EOS Saunatechnik GmbH applies.
The warranty conditions and scope are, except the duration, as per standard manufacturer’s warranty.
A warranty service will only be executed if
- the product and its owner are registered with EOS Saunatechnik GmbH.
- the assembly, commissioning and long-term operation of our products have been carried out professionally and in accordance with the manufacturer's specifications (see installation and operating instructions).
- the original purchase receipt of the product is presented.
- proof that the electrical connection has been carried out by a qualified electrician can be provided.
- the warranty claim is sent to our service department together with the device designation, the item number, the serial number and a significant description of the error and an RMA number has been assigned there for the process.
A warranty service will not be executed if
- changes have been made to our products without our written consent.
- defects were caused a result of improper use and gross intent.
- no original EOS spare parts were used within the warranty period.
- the product is not exclusively used for private purposes.
Any warranty claim is void if the original type plate has been altered, replaced, removed, defaced or manipulated in any other way.
